Hybrid Home Energy Solution Bluesun
Complete system for production, storage and distribution of electric energy contents solar panels, combiner box, hybrid inverter, lithium battery, connection cables, conectors and mounting support.
Power from 6 kW to 15 kWh and energety capacitay from 16.2 kWh to 27.13 kWh is intended for smaller objects, typically for family houses.
Hybrid solar system 6 kW
| Solar panel BSM440 |
|---|
| Panel type: | monocrystalline |
| Maximum power: | 440 W |
| Operating voltage: | 34.8 V |
| Operating current: | 12.5 A |
| Dimensions: | 1812×1096×30 mm |
| Weight: | 21.2 kg |
| Connecting cables: | midship 4 mm², lenght 400 m
|

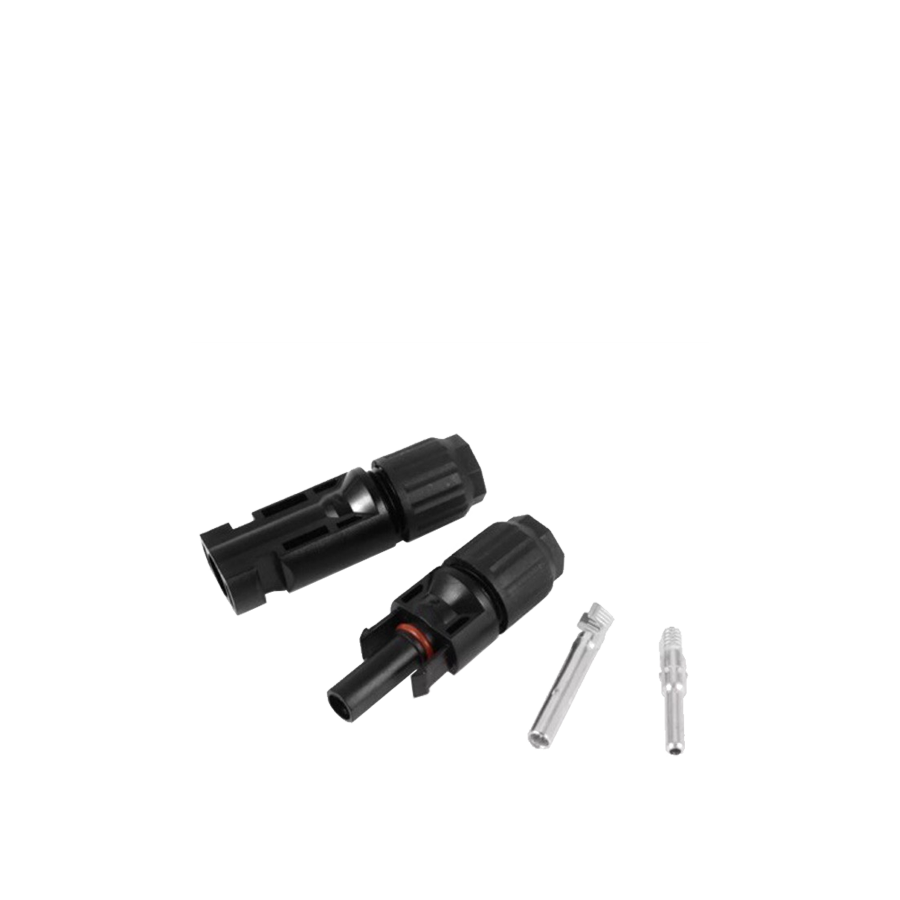

| Connectors: | MC4, 4 pairs
|
| Ambient temperature: | -40~85°C
|
| Combiner: | 1 input, 1 output
|
| Mounting elements (roof or ground): | 1 set
|
| Number of panels in the set: | 14 pcs |
| Total installed power: | 6,16 kWp
|
| Hybrid Inverter BSE6KL1 |
|---|
| Dimensions: | 550×200×515 mm |
| Weight: | 26 kg |
| Ambient temperature / relative humidity: | -25~60°C / 0~95%Rh (no condensation)
|
| Maximum altitude: | 2000 m
|
| Operating noise: | < 35 dB |
| Cooling: | natural convection |
| Protection: | IP65 |
| Transformer: | no |
| Self-consumption: | < 3 W |
| Maximum efficiency DC: | 97.6% |
| Charge/discharge efficiency: | 95.5% / 95% |
| Display: | LCD |
| EMS communication port: | RS485, CAN, LAN, WiFi |
| AC Output of the Inverter |
|---|
| Maximum apparent power: | 6000 VA |
| Rated power: | 5980 W |
| Maximum current: | 26 A
|
| Rated voltage AC (range): | 230 V (180~280 V)
|
| Frequency: | 50/60 Hz |
| Power factor: | 0.99 |
| THDi: | < 3% |
| THDu: | < 2% |
| Connection: | L + N + PE |
| EPS Output |
|---|
| Apparent power: | 13.2 kVA |
| Rated current: | 19.1 A |
| Switching time: | < 20 ms |
| Overload: | 110% - 1 min, 120% - 30 s, 150% - 10 s |
| PV Input for MPPT |
|---|
| Maximum input power: | 7000 W |
| Maximum input voltage: | 550 V |
| MPPT input voltage range: | 125~500 V
|
| Number of MPPT: | 2 |
| Compatible battery types: | lithium-ion, lead-acid |
| Rated voltage of battery (range): | 48 V (40~58 V) |
| Max. charging / discharging power: | 5510 W / 6300 W |
| Max. charging / discharging current: | 95 A / 110 A |
| BMS interface: | CAN, RS485 |
| Battery Module BST-15.0LV |
|---|
| Nominal energy capacity: | 16.28 kWh
|
| Usable energy capacity: | 14.65 kWh |
| Charging cycles: | ≥ 6000 (0.5C, 25°C) |
| Rated voltage DC: | 51.2 V |
| Discharging voltage range DC: | 40~48 V |
| Charging voltage range DC: | 56~58.4 V |
| Charging / discharging current: | 80 A (recommended) 100 A (maximal) |
| Internal resistance: | ≤ 30 mΩ |
| Dimensions: | 600×400×683 mm |
| Weight: | 170 kg |
| Ambient temperature / relative humidity: | -10~50°C / 15~85%Rh (no condensation)
|
| Battery type: | lithium-iron phosphate |
| BMS |
|---|
| Self-consumption: | < 2 W (0.1 W stand-by) |
| Monitored parameters: | System voltage, current, cell voltage,cell temperature, module temperature |
| Communication interface: | RS485, RS232, CAN |
Hybrid solar system 8 kW
| Solar Panel BSM440 |
|---|
| Panel type: | monocrystalline |
| Maximum power: | 440 W |
| Operating voltage: | 34.8 V |
| Operating current: | 12.5 A |
| Dimensions: | 1812×1096×30 mm |
| Weight: | 21.2 kg |
| Connecting cables: | midship 4 mm², lenght 600 m
|
| Connectors: | MC4, 6 pairs
|
| Ambient temperature: | -40~85°C
|
| Combiner: | 2 input, 1 output
|
| Mounting elements (roof or ground): | 1 set
|
| Number of panels in the set: | 14 pcs |
| Total installed power: | 8,80 kWp
|
| Hybrid Inverter BSE8KH3 |
|---|
| Dimensions: | 530×200×600 mm |
| Weight: | 29 kg |
| Ambient temperature / relative humidity: | -35~60°C / 0~100%Rh (no condensation)
|
| Maximum altitude: | 4000 m (> 2000 m efficiency decrease)
|
| Operating noise: | < 35 dB |
| Cooling: | natural convection |
| Protection: | IP65 |
| Transformer: | no |
| Self-consumption: | < 3 W |
| Maximum efficiency DC: | 97.9% |
| Charge/discharge efficiency: | 97.5% |
| Display: | LCD |
| EMS communication port: | RS485, CAN, LAN, WiFi |
| AC Output of the Inverter |
|---|
| Maximum apparent power: | 8.8 kVA |
| Rated power: | 8 kW |
| Maximum current: | 12.7 A
|
| Rated voltage AC (range): | 380 V (380~400 V)
|
| Frequency: | 50/60 Hz |
| Power factor: | 0.8 |
| THDi: | < 2% |
| THDu: | < 2% |
| Connection: | 3×L + N + PE |
| EPS Output |
|---|
| Apparent power: | 8.8 kVA |
| Rated current: | 12.7 A |
| Switching time: | < 20 ms |
| Overload: | 110% - 1 min, 120% - 30 s, 150% - 10 s |
| PV Input for MPPT |
|---|
| Maximum input power: | 10.4 kW |
| Maximum input voltage: | 1000 V |
| MPPT input voltage range: | 180~850 V
|
| Number of MPPT: | 2 |
| Compatible battery types: | lithium-ion, lead-acid |
| Rated voltage of battery (range): | 48 V (40~58 V) |
| Max. charging / discharging power: | 8 kW |
| Max. charging / discharging current: | 50 A |
| BMS interface: | CAN, RS485 |
| Battery Module BST-20.0LV |
|---|
| Nominal energy capacity: | 21.68 kWh
|
| Usable energy capacity: | 19.53 kWh |
| Charging cycles: | ≥ 6000 (0.5C, 25°C) |
| Rated voltage DC: | 51.2 V |
| Discharging voltage range DC: | 40~48 V |
| Charging voltage range DC: | 56~58.4 V |
| Charging / discharging current: | 80 A (recommended) 100 A (maximal) |
| Internal resistance: | ≤ 30 mΩ |
| Dimensions: | 600×400×832 mm |
| Weight: | 215 kg |
| Ambient temperature / relative humidity: | -10~50°C / 15~85%Rh (no condensation)
|
| Battery type: | lithium-iron phosphate |
| BMS |
|---|
| Self-consumption: | < 2 W (0.1 W stand-by) |
| Monitored parameters: | System voltage, current, cell voltage,cell temperature, module temperature |
| Communication interface: | RS485, RS232, CAN |
Hybrid solar system 10 kW
| Solar Panel BSM440 |
|---|
| Panel type: | monocrystalline |
| Maximum power: | 440 W |
| Operating voltage: | 34.8 V |
| Operating current: | 12.5 A |
| Number of panels in the set: | 22 pcs |
| Dimensions: | 1812×1096×30 mm |
| Weight: | 21.2 kg |
| Connecting cables: | midship 4 mm², lenght 800 m
|
| Connectors: | MC4, 8 pairs
|
| Ambient temperature: | -40~85°C
|
| Combiner: | 2 input, 1 output
|
| Mounting elements (roof or ground): | 1 set
|
| Hybrid Inverter BSE10KH3 |
|---|
| Dimensions: | 530×200×600 mm |
| Weight: | 29 kg |
| Ambient temperature / relative humidity: | -35~60°C / 0~100%Rh (no condensation)
|
| Maximum altitude: | 4000 m (> 2000 m efficiency decrease)
|
| Operating noise: | < 35 dB |
| Cooling: | natural convection |
| Protection: | IP65 |
| Transformer: | no |
| Self-consumption: | < 3 W |
| Maximum efficiency DC: | 98.2% |
| Charge/discharge efficiency: | 97.5% |
| Display: | LCD |
| EMS communication port: | RS485, CAN, LAN, WiFi |
| AC Output of the Inverter |
|---|
| Maximum apparent power: | 11 kVA |
| Rated power: | 10 kW |
| Maximum current: | 15.9 A
|
| Rated voltage AC (range): | 380 V (380~400 V)
|
| Frequency: | 50/60 Hz |
| Power factor: | 0.8 |
| THDi: | < 2% |
| THDu: | < 2% |
| Connection: | 3×L + N + PE |
| EPS Output |
|---|
| Apparent power: | 11.2 kVA |
| Rated current: | 15.9 A |
| Switching time: | < 20 ms |
| Overload: | 110% - 1 min, 120% - 30 s, 150% - 10 s |
| PV Input for MPPT |
|---|
| Maximum input power: | 13 kW |
| Maximum input voltage: | 1000 V |
| MPPT input voltage range: | 180~850 V
|
| Number of MPPT: | 2 |
| Compatible battery types: | lithium-ion, lead-acid |
| Rated voltage of battery (range): | 48 V (40~58 V) |
| Max. charging / discharging power: | 11 kW |
| Max. charging / discharging current: | 50 A |
| BMS interface: | CAN, RS485 |
| Battery Module BST-20.0LV |
|---|
| Nominal energy capacity: | 21.68 kWh
|
| Usable energy capacity: | 19.53 kWh |
| Charging cycles: | ≥ 6000 (0.5C, 25°C) |
| Rated voltage DC: | 51.2 V |
| Discharging voltage range DC: | 40~48 V |
| Charging voltage range DC: | 56~58.4 V |
| Charging / discharging current: | 80 A (recommended) 100 A (maximal) |
| Internal resistance: | ≤ 30 mΩ |
| Dimensions: | 600×400×832 mm |
| Weight: | 215 kg |
| Ambient temperature / relative humidity: | -10~50°C / 15~85%Rh (no condensation)
|
| Battery type: | lithium-iron phosphate |
| BMS |
|---|
| Self-consumption: | < 2 W (0.1 W stand-by) |
| Monitored parameters: | System voltage, current, cell voltage,cell temperature, module temperature |
| Communication interface: | RS485, RS232, CAN |
Hybrid solar system 12 kW
| Solar Panel BSM440 |
|---|
| Panel type: | monocrystalline |
| Maximum power: | 440 W |
| Operating voltage: | 34.8 V |
| Operating current: | 12.5 A |
| Number of panels in the set: | 28 pcs |
| Dimensions: | 1812×1096×30 mm |
| Weight: | 21.2 kg |
| Connecting cables: | midship 4 mm², lenght 800 m
|
| Connectors: | MC4, 8 pairs
|
| Ambient temperature: | -40~85°C
|
| Combiner: | 2 input, 1 output
|
| Mounting elements (roof or ground): | 1 set
|
| Hybrid Inverter BSE12KH3 |
|---|
| Dimensions: | 530×200×600 mm |
| Weight: | 29 kg |
| Ambient temperature / relative humidity: | -35~60°C / 0~100%Rh (no condensation)
|
| Maximum altitude: | 4000 m (> 2000 m efficiency decrease)
|
| Operating noise: | < 35 dB |
| Cooling: | natural convection |
| Protection: | IP65 |
| Transformer: | no |
| Self-consumption: | < 3 W |
| Maximum efficiency DC: | 98.2% |
| Charge/discharge efficiency: | 97.5% |
| Display: | LCD |
| EMS communication port: | RS485, CAN, LAN, WiFi |
| AC Output of the Inverter |
|---|
| Maximum apparent power: | 13.2 kVA |
| Rated power: | 12 kW |
| Maximum current: | 19.1 A
|
| Rated voltage AC (range): | 380 V (380~400 V)
|
| Frequency: | 50/60 Hz |
| Power factor: | 0.8 |
| THDi: | < 2% |
| THDu: | < 2% |
| Connection: | 3×L + N + PE |
| EPS Output |
|---|
| Apparent power: | 13.2 kVA |
| Rated current: | 19.1 A |
| Switching time: | < 20 ms |
| Overload: | 110% - 1 min, 120% - 30 s, 150% - 10 s |
| PV Input for MPPT |
|---|
| Maximum input power: | 15.6 kW |
| Maximum input voltage: | 1000 V |
| MPPT input voltage range: | 180~850 V
|
| Number of MPPT: | 2 |
| Compatible battery types: | lithium-ion, lead-acid |
| Rated voltage of battery (range): | 48 V (40~58 V) |
| Max. charging / discharging power: | 13.2 kW |
| Max. charging / discharging current: | 50 A |
| BMS interface: | CAN, RS485 |
| Battery Module BST-25.0LV |
|---|
| Nominal energy capacity: | 21.68 kWh
|
| Usable energy capacity: | 19.53 kWh |
| Charging cycles: | ≥ 6000 (0.5C, 25°C) |
| Rated voltage DC: | 51.2 V |
| Discharging voltage range DC: | 40~48 V |
| Charging voltage range DC: | 56~58.4 V |
| Charging / discharging current: | 80 A (recommended) 100 A (maximal) |
| Internal resistance: | ≤ 30 mΩ |
| Dimensions: | 600×400×832 mm |
| Weight: | 215 kg |
| Ambient temperature / relative humidity: | -10~50°C / 15~85%Rh (no condensation)
|
| Battery type: | lithium-iron phosphate |
| BMS |
|---|
| Self-consumption: | < 2 W (0.1 W stand-by) |
| Monitored parameters: | System voltage, current, cell voltage,cell temperature, module temperature |
| Communication interface: | RS485, RS232, CAN |
Hybrid solar system 15 kW
| Solar Panel BSM440 |
|---|
| Panel type: | monocrystalline |
| Maximum power: | 440 W |
| Operating voltage: | 34.8 V |
| Operating current: | 12.5 A |
| Number of panels in the set: | 34 pcs |
| Dimensions: | 1812×1096×30 mm |
| Weight: | 21.2 kg |
| Connecting cables: | midship 4 mm², lenght 800 m
|
| Connectors: | MC4, 8 pairs
|
| Ambient temperature: | -40~85°C
|
| Combiner: | 2 input, 1 output
|
| Mounting elements (roof or ground): | 1 set
|
| Hybrid Inverter BSE15KH3 |
|---|
| Dimensions: | 530×200×600 mm |
| Weight: | 34 kg |
| Ambient temperature / relative humidity: | -35~60°C / 0~100%Rh (no condensation)
|
| Maximum altitude: | 4000 m (> 2000 m efficiency decrease)
|
| Operating noise: | < 35 dB |
| Cooling: | natural convection |
| Protection: | IP65 |
| Transformer: | no |
| Self-consumption: | < 3 W |
| Maximum efficiency DC: | 98.5% |
| Charge/discharge efficiency: | 97.5% |
| Display: | LCD |
| EMS communication port: | RS485, CAN, LAN, WiFi |
| AC Output of the Inverter |
|---|
| Maximum apparent power: | 16.5 kVA |
| Rated power: | 15 kW |
| Maximum current: | 23.8 A
|
| Rated voltage AC (range): | 380 V (380~400 V)
|
| Frequency: | 50/60 Hz |
| Power factor: | 0.8 |
| THDi: | < 2% |
| THDu: | < 2% |
| Connection: | 3×L + N + PE |
| EPS Output |
|---|
| Apparent power: | 13.2 kVA |
| Rated current: | 19.1 A |
| Switching time: | < 20 ms |
| Overload: | 110% - 1 min, 120% - 30 s, 150% - 10 s |
| PV Input for MPPT |
|---|
| Maximum input power: | 19.5 kW |
| Maximum input voltage: | 1000 V |
| MPPT input voltage range: | 180~850 V
|
| Number of MPPT: | 2 |
| Compatible battery types: | lithium-ion, lead-acid |
| Rated voltage of battery (range): | 48 V (40~58 V) |
| Max. charging / discharging power: | 13.2 kW |
| Max. charging / discharging current: | 50 A |
| BMS interface: | CAN, RS485 |
| Battery Module BST-25.0LV |
|---|
| Nominal energy capacity: | 21.68 kWh
|
| Usable energy capacity: | 19.53 kWh |
| Charging cycles: | ≥ 6000 (0.5C, 25°C) |
| Rated voltage DC: | 51.2 V |
| Discharging voltage range DC: | 40~48 V |
| Charging voltage range DC: | 56~58.4 V |
| Charging / discharging current: | 80 A (recommended) 100 A (maximal) |
| Internal resistance: | ≤ 30 mΩ |
| Dimensions: | 600×400×832 mm |
| Weight: | 215 kg |
| Ambient temperature / relative humidity: | -10~50°C / 15~85%Rh (no condensation)
|
| Battery type: | lithium-iron phosphate |
| BMS |
|---|
| Self-consumption: | < 2 W (0.1 W stand-by) |
| Monitored parameters: | System voltage, current, cell voltage,cell temperature, module temperature |
| Communication interface: | RS485, RS232, CAN |
The system configuration can be changed according to requirements. It is possible to add more photovoltaic panels and increase the capacity of the battery storage.
© 2023 Radek Klabal, All rights reserved
