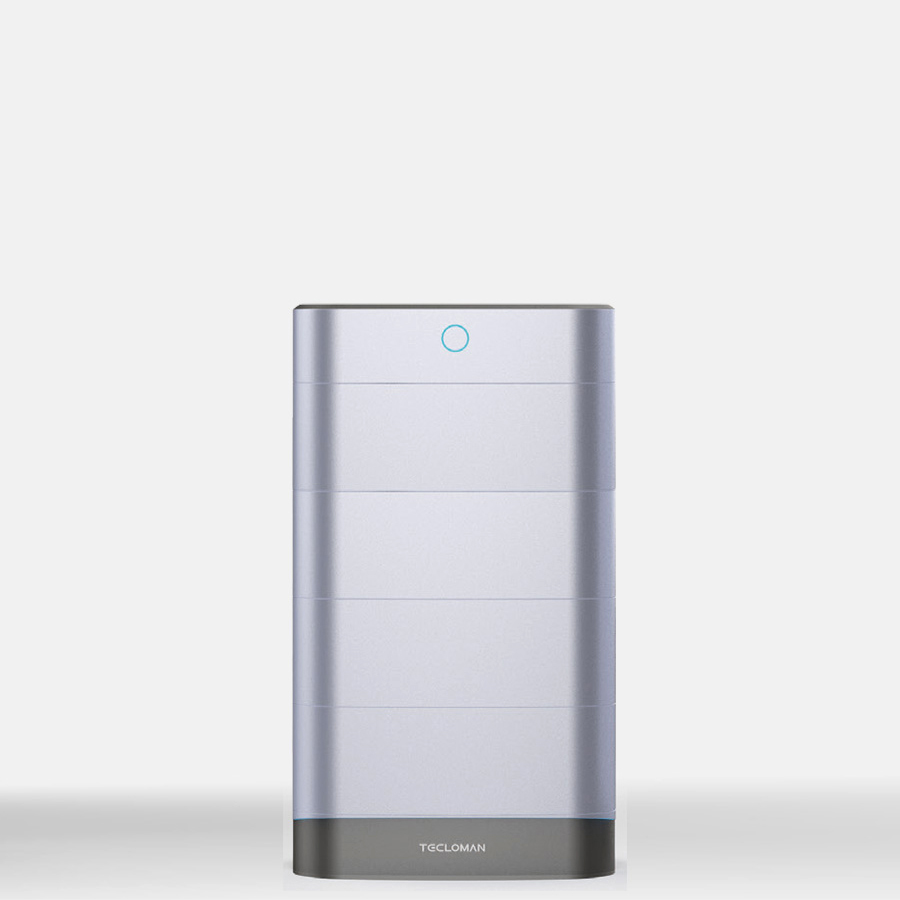

Modular Battery Storage Firefly-H4

Firefly-H4
System with energy capacity 10.24 kWh is environmentally friendly. It contains four lithium iron phosphate battery modules and a unique battery management system. It is compatible with Tecloman inverters as well as with all standard inverters (GoodWe, Growat, Solis, SMA, etc.). It is possible to connect up to three storages in parallel.
Due to the characteristics of the batteries, charging will be derated at temperatures below 15°C. The actual usable capacity of the system is affected by the ambient temperature, the output power of the power supply module and its efficiency.
Features
Dimensions:600×330×1135 mm
Weight:165 kg
Ambient temperature / relative humidity:-10~55°C / 5~90%Rh
Maximum altitude:2000 m
Cooling:natural convection
Protection:IP55
Battery modules:4 × 2.56 kWh LiFePO4
EMS communication portRS485, WiFi, CAN, LAN
Electrical paramaters
Rated energy capacity:10.24 kWh
Usable energy capacity:9.22 kWh
Rated power DC:2300 W
Self consumption:28 W (0.1 W stand‑by)
Rated voltage DC:204.8 V
Operating voltage range DC:179.4~230.4 V
Short circuit current:2~3 kA
Maximum charging current:50 A
Maximum discharging current:50 A
Charging cycles:≥ 6000 (0.5C, 25°C)
Compliance with the standards, directives and regulations
IEC62619, IEC62040‑1, RoHS, WEEE, UN38.3, UL1973
